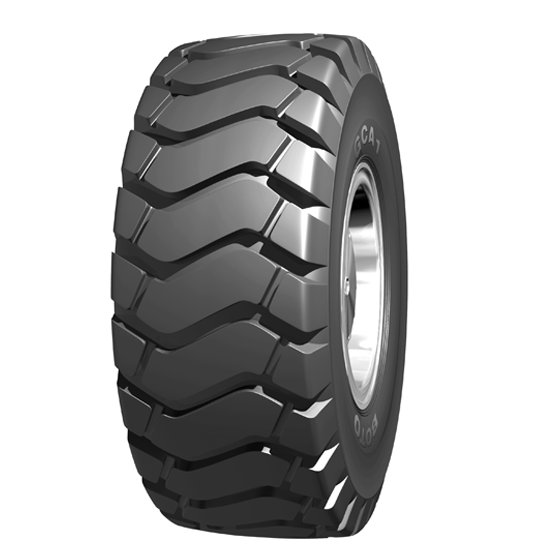

1. Versatile tread pattern designed for loader, dozer and other equip- ment used for construction,stockpile, loading applications ;
2. Superior traction ;
3. Ensures a very comfortable ride due to its superb stability ;
4. The inner liner with specially designed compound helps prevent air leakage .
| Size | STAR RATING | TYPE | TRA CODE | STANDARD RIM | TREAD DEPTH (mm) | LOAD INDEX | SECTION WIDTH (mm) | OVERALL DIAMETER (mm) | MAXIMUM LOAD &INFLATION PRESSURE (kg / kpa) | |
| 50km/h | 10km/h | |||||||||
| 17.5R25 | ★★ | TL | E-3/L-3 | 14.00/1.5 | 28 | 167B/182A2 | 445 | 1348 | 5450/525 | 8500/650 |
| 20.5R25 | ★★ | TL | E-3/L-3 | 17.00/2.0 | 30 | 177B/193A2 | 521 | 1493 | 7300/525 | 11500/650 |
| 23.5R25 | ★★ | TL | E-3/L-3 | 19.5/2.5 | 31.5 | 185B/201A2 | 597 | 1617 | 9250/450 | 14500/575 |
| 23.5R25 | ★★ | TL | E-3/L-3A | 19.5/2.5 | 41 | 185B/201A2 | 597 | 1617 | 9250/525 | 14500/650 |
| 26.5R25 | ★★ | TL | E-3/L-3 | 22.00/3.0 | 36 | 193B/209A2 | 673 | 1750 | 11500/525 | 18500/650 |
| 29.5R25 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 200B/216A2 | 749 | 1874 | 14000/525 | 22400/650 |
| 29.5R29 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 202B/218A2 | 749 | 1975 | 15000/525 | 23600/650 |
