M-TERRAIN

POSITION:

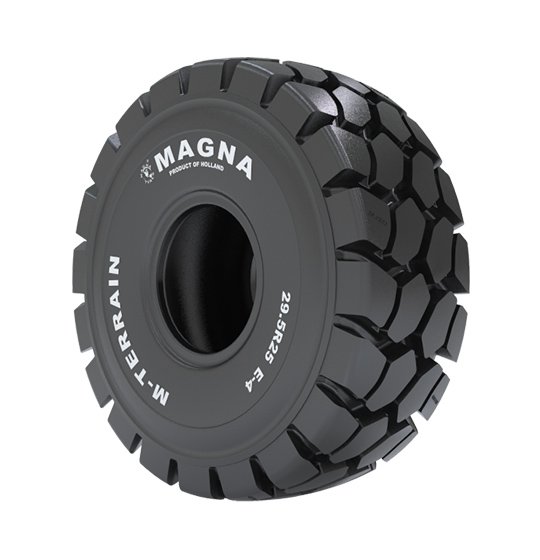

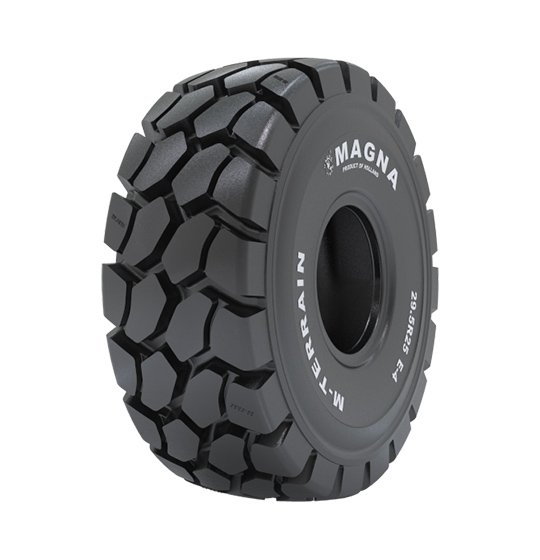

The Magna M-Terrain is an E4-pattern tyre for all terrain, with excellent traction and safety characteristics. The self-cleaning and sturdy deep tread of the Magna M-Terrain extends longevity and reduces the long-term operating costs.

An exceptionally sturdy casing makes the Magna M-Terrain a long-lasting tyre, in even the most demanding conditions.

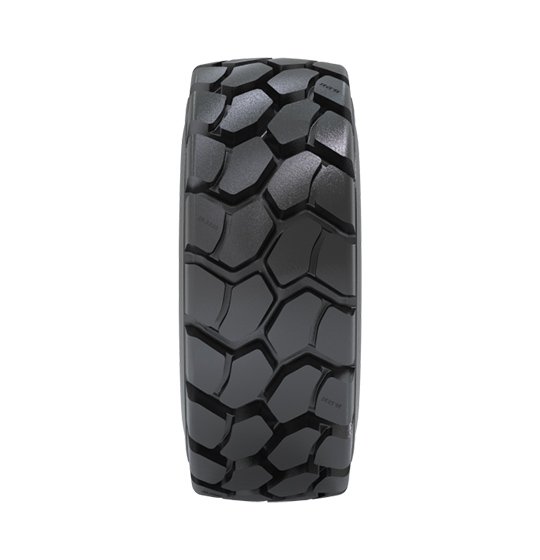

· The multi-edged blocks offers improved flotation and super traction on soft and muddy soil

· Longer tread life due to the deeper E4/L4 – tread depth and unique tread compound

· Additional protective sidewalls are shaped to minimize damage from cutting

Add inquiry car

Inquire now

product details

Size	Pattern	Load symbol	TRA code	Max speed	Load speed index	Single max load pressure	Rim	Overall diameter (mm)	Section width (mm)	Tread depth (mm)	Tyre weight
20.5R25	M-Terrain	**	E4	50	177B	7300 kg/ 5.25 bar	17.00/2.0	1515	527	48	263
20.5R25	M-Terrain	**	L4	10	193A2	11500 kg/ 6.50 bar	17.00/2.0	1515	527	48	263
23.5R25	M-Terrain	**	E4	50	185B	9250 kg/ 5.25 bar	19.50/2.5	1675	595	53	317
23.5R25	M-Terrain	**	L4	10	195A2	14500 kg/ 6.50 bar	19.50/2.5	1675	595	53	317
26.5R25	M-Terrain	**	E4	50	193B	11500 kg/ 5.25 bar	22.00/3.0	1800	675	56	507
26.5R25	M-Terrain	**	L4	10	202A2	18500 kg/ 6.50 bar	22.00/3.0	1800	675	56	507
29.5R25	M-Terrain	**	E4	50	200B	14000 kg/ 5.25 bar	25.00/3.5	1875	750	59	652
29.5R25	M-Terrain	**	L4	10	216A2	22400 kg/ 6.50 bar	25.00/3.5	1875	750	59	652
750/65R25	M-Terrain	**	E4	50	190B	10600 kg/ 5.25 bar	24.00/3.0	1610	754	53	360
750/65R25	M-Terrain	**	L4	10	209A2	18500 kg/ 6.25 bar	24.00/3.0	1610	754	53	360
875/65R29	M-Terrain	**	E4	50	203B	15500 kg/ 5.25 bar	28.00/3.5	1922	879	59	725
875/65R29	M-Terrain	**	L4	10	214A2	25750 kg/ 6.25 bar	28.00/3.5	1922	879	59	725
800/80R29	M-Terrain	**	E4	50	206B	17000 kg/ 5.25 bar	27.00/3.5	2000	792	69	-
800/80R29	M-Terrain	**	L4	10	217A2	23000 kg/ 5.25 bar	27.00/3.5	2000	792	69	-

内容1 Improved traction and performance through non-directional E4 tread

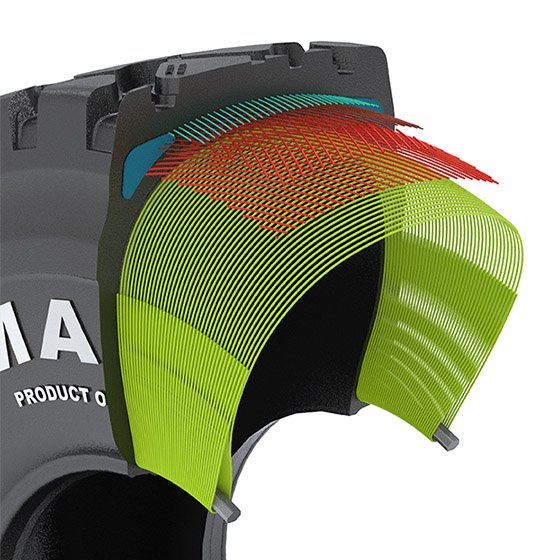

内容2 All steel radial construction. Improved protector plies optimize load performance and operator comfort

内容3 New improved technology of the high-tech casing reduces heat build-up inside the tyre
