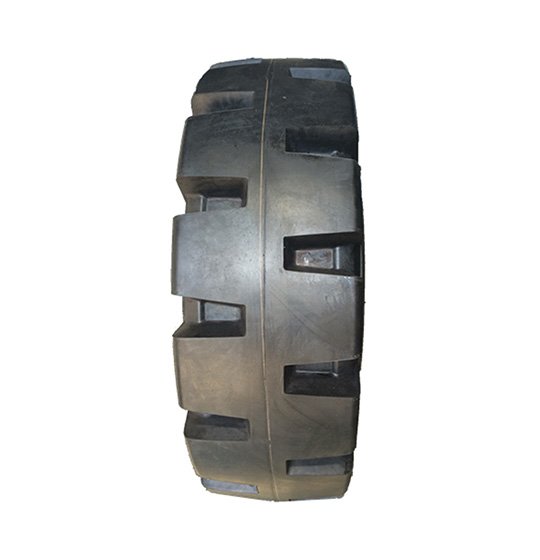

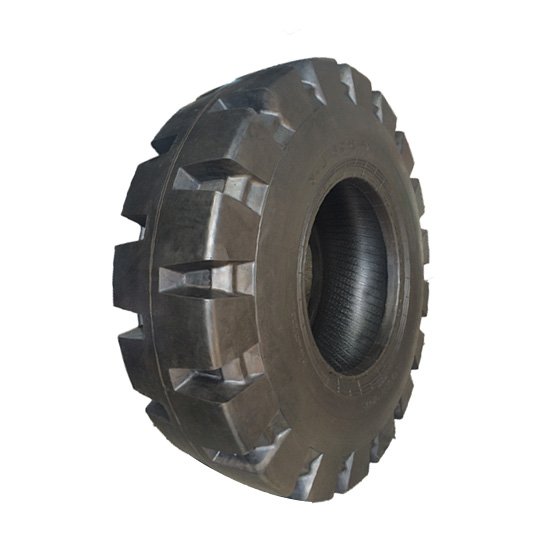

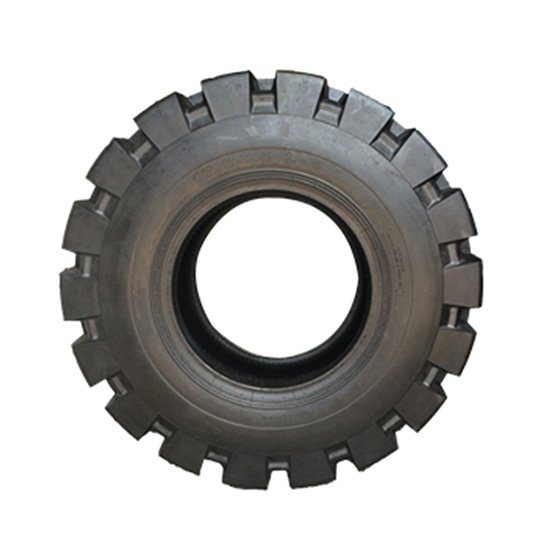

Suitable for wheel loader with extra deep tread and cut resistant compound for rocky surface and mining service.
Excellent traction and stability comfortable / Long life tread design.
Business Email: sales@vglorygroup.com
Supervision Email: vglory@vglorygroup.com
Suitable for wheel loader with extra deep tread and cut resistant compound for rocky surface and mining service.
Excellent traction and stability comfortable / Long life tread design.
Size | PR | T.D. (mm) | S.R. | S.W. (mm) | O.D. (mm) | Max Loading(kg) @ 40km/h | Pressure(kpa) @ 40km/h | Type | Code |
17.5-25 | 20 | 63.5 | 14.00/1.5 | 445 | 1400 | 8250 | 575 | TT/TL | H167 L-5 |
24 | 8950 | 650 | |||||||
20.5-25 | 24 | 71 | 17.00/2.0 | 520 | 1560 | 10300 | 525 | ||
28 | 11500 | 625 | |||||||
23.5-25 | 24 | 78.5 | 19.50/2.5 | 595 | 1675 | 12500 | 475 | ||
28 | 13600 | 550 | |||||||
32 | 14600 | 625 | |||||||
26.5-25 | 28 | 87.5 | 22.00/3.0 | 675 | 1800 | 15500 | 450 | TL | |
32 | 17000 | 525 | |||||||
29.5-25 | 28 | 95 | 25.00/3.5 | 750 | 1920 | 17500 | 425 | ||
34 | 20000 | 525 |
